Placid Industries

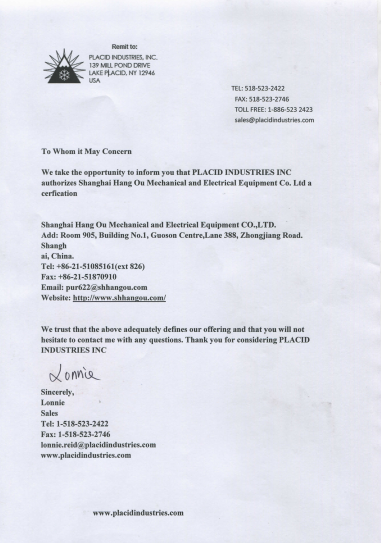

Placid Industries工厂授权上海航欧机电设备有限公司中国区代理(Non-exclusive)

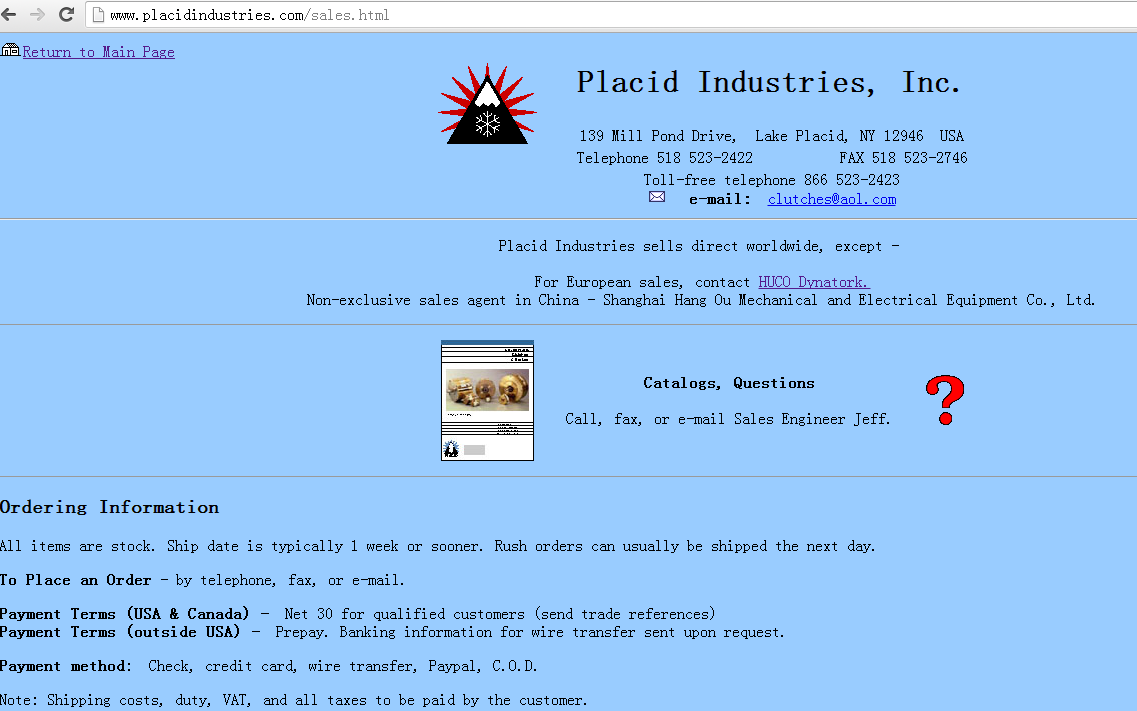

http://www.placidindustries.com/sales.html

Placid Industries工厂授权上海航欧机电设备有限公司中国区代理(Non-exclusive)

Placid Industries工厂授权上海航欧机电设备有限公司中国区代理(Non-exclusive)





PLACID传动控制器 磁粉制动器/离合器:PLACID普莱西德工业公司1973年-成立 , 1981年-制造磁粉离合器和制动器,1990年在欧洲销售通过HucoD ,1994年-制造磁滞制动器,2003年销售大磁粉制动器(千字节)和离合器(架 KC)



PLACID产品特征:由于没有电激励,自由的轴旋转。 随着电子激发,成为轴耦合的情况。 虽然负载转矩小于输出扭矩,轴不会旋转。 当负载转矩的增加,制动将下滑顺着水平的转矩所规定的线圈输入电流。



PLACID公司主要产品:传动控制器,PLACID磁粉离合器PLACID传动控制器,PLACID磁粉制动器, PLACID磁粉离合器, PLACID磁滞制动器, PLACID储存自订离合器和制动器, PLACID

主要型号:

 B5ZD 0.003 – 0.063 1.5 11 x 10-9 1.5 0.7 4000 0.2 B5ZD data sheet
 B5Z 0.006 – 0.31 16 x 10-8 2 3500 B5Z data sheet
 B1 0.04 – 1 2 11 x 10-7 3.5 4 3000 0.6 B1 data sheet
 B2 0.05 – 2.5 3 55 x 10-7 8 5 2500 1 B2 data sheet
 B6 0.2 – 6 4 23 x 10-6 15 25 2000 2 B6 data sheet
 B15 0.3 – 15 6 34 x 10-6 20 2.5 B15 data sheet
 B35 0.6 – 35 9 12 x 10-5 30 50 1800 4 B35 data sheet
 B60 1 – 60 8 45 x 10-5 50 100 7 B60 data sheet
 B115 2.5 – 115 13 61 x 10-5 55 120 8 B115 data sheet
 B150 3 – 150 15 x 10-4 80 1300 12 B150 data sheet
 B220 4 – 220 18 29 x 10-4 110 1000 21 B220 data sheet
B5Z
B5ZD
Options     DXF
B1 Options     DXF
B2     DXF     DXF
B6     DXF     DXF
B15     DXF     DXF     DXF
B35     DXF       DXF     DXF
B60 Options     DXF
B115     DXF     DXF
B150     DXF     DXF
B220       DXF     DXF
MODEL

(Click p/n
to view
photo)

Shaft
Style
 Torque
Range

(lb.-ft.)

 24v
Coil
Maximum
Overhung
Load

(lbs.)

Max.
RPM
Weight

(lbs.)

Data Sheets



 Drawings

  Optional
Electric
Fan
Cooling
Input
Current

(amps)
 KB-2.5 Solid 0.2 – 15 1.3 90 1800 19 KB-2.5
data sheet
DXF
 KB-5 0.5 – 38 2 125 31 KB-5
data sheet
DXF
 POB-100F 0.5 – 70 2.4 175 79 POB-100F
data sheet
DXF POB-100F
with fan
 POB-200F 2 – 130 2.7 200 128 POB-200F
data sheet
DXF POB-200F
with fan
 POB-400F  4 – 300 3.5 325 225 POB-400F
data sheet
DXF POB-400F
with fan
 PLB-50 Hollow 1.4 – 30 1.25 125 500 17 PLB-50
data sheet
DXF
 PLB-100 1.5 – 70 2 175 31 PLB-100
data sheet
DXF
 PLB-200 4 – 140 2.4 200 62 PLB-200
data sheet
DXF
MODEL Heat Dissipation  (Watts) Compressed Air
at
100 RPM
 * at
1000 RPM
with external cooling by:  Pressure
(lb.-in.2)
Flow Rate
(ft.3 / minute)
 Compressed
Air
Optional
Electric Fan
 KB-2.5 130 175 260 4 6
 KB-5 190 275 425 5 7
 POB-100F  300 500 800 9 10
 POB-200F  425 800 1200 7 6
 POB-400F  550 1200 1900 21 14
 PLB-50 160, all RPM 240 7 7
 PLB-100 200, all RPM 300 8
 PLB-200 350, all RPM 500 9
MODEL

Click p/n
to view

Torque
Range

(lb.-in.)

Input
Electric
Power

(Watts)
Slip Heat
Dissipation

(Watts)

Maximum
Overhung
Load

(lbs.)

Max.
RPM
 Weight

(lbs.)

Data Sheets



Drawings
 C2D  0.01 – 0.31 3 2 4 2000 0.7 C2D data sheet  PDF  DXF
 C2 0.06 – 2 6 C2 data sheet
 C5 0.19 – 5 5 10 20 3 C5 data sheet PDF DXF
 CC14-H   0.4 – 14 5 20 35 1400 3.5  CC14 data sheet  PDF DXF
 C15 0.4 – 15 6 5 C15 data sheet PDF DXF
 C35 1 – 35 10 30 50 1000 9 C35 data sheet PDF DXF
 C70 1.3 – 70 14 50 80 17 C70 data sheet PDF DXF
 C130 4 – 130 15 80 22  C130 data sheet  PDF DXF
MODEL

(Click p/n
to view
photo)

Shaft
Style
 Torque
Range

(lb.-ft.)

 24v
Coil
 Max.
Over-
hung
Load

(lbs.)

Max.
RPM
Weight

(lbs.)

Data Sheets



  Drawings

Input
Current

(amps)
 KC-2.5 solid 0.2 – 15 1.3 90  1800 21 KC-2.5
data sheet
DXF
 KC-5 0.5 – 38 2 125 35 KC-5
data sheet
DXF
 POC-100F 0.5 – 70 2.4 175 87 POC-100F
data sheet
DXF
 POC-200F 2 – 130 2.7 200 147 POC-200F
data sheet
DXF
 POC-400F 4 – 300 3.5 325 259 POC-400F
data sheet
DXF
 PHC-50 hollow 1 – 30 1.3 125 1000 26 PHC-50
data sheet
DXF
 PHC-100  1 – 65 2.2 175 46 PHC-100
data sheet
DXF
MODEL Heat Dissipation
(watts)
Compressed Air
at
100 RPM
at
1000 RPM
with compressed
air cooling
Pressure
(lb.-in.2)
Flow Rate
(ft.3 / minute)
KC-2.5 130 175 260 4 6
KC-5 190 275 425 5 7
POC-100F 300 500 800 9 5
POC-200F 425 800 1200 7 6
POC-400F 550 1200 1900 21 14
PHC-50 250 400
PHC-100 400 800
Machine: Wire EDM (Electric Discharge Machining) machine
Manufacturer: Vollmer

  • Placid part number: B7-24-1ME
  • OEM part number: unknown
  • Coil: 24 volts, Resistance: 134 ohms
  • Case O.D. = 2.00 “, 51 mm

Application – Control tension in wire that cuts metal.



Machine: Wire EDM (Electric Discharge Machining) machine
Manufacturer: Charmilles

  • Placid part number: B10-18
  • OEM part number: 434234.
    Replaces 433833 with no modifications.
  • For machines: FI290, FI300, FI500
  • Coil: 18 volts, Resistance: 38 ohms
  • Case O.D. = 2.36 “, 60 mm

Application – Control tension in wire that cuts metal.



Machine: Photographic film developer
Manufacturer: Kodak

  • Placid part number: B35-EK
  • Replaces: Qualex 2B4473,  Electroid 50-EPB30-11-08S-24
  • Coil: 24 volts, Resistance: 50 ohms
  • Case O.D. = 3.375″

Application – Tensions roll of film



Machine: Microfiche (microfilm) duplicator
Manufacturer: Photomatrix (product line now owned by Scan-Optics)
Was sold as a Kodak machine.

  • Placid part number: B35-12-PH
  • OEM part number: Photomatrix 102363
  • Coil: 12 volts, Resistance: 18 ohms
  • Case O.D. = 3.375″

Application – Tensions roll of film



Machine: Digital Printing Press, Quickmaster Di
Manufacturer: Heidelberg

  • Placid part number: B60-HEID
  • OEM part number: A4.114.1420
  • Coil: 12 volts, Resistance: 18 ohms
  • Case O.D. = 4.5 “

Application – Tensions plate material.



Machine: Textile processing machine
Manufacturer: Young Engineering

  • Placid part number: B60-YE-1
  • OEM part number: 26010101
  • Coil: 90 volts, Resistance: 547 ohms
  • Case O.D. = 4.5 “
  • 2 brakes per machine

Application – Provides drag torque on 1/2 of a roller to maintain web straightness.



Machine: Pipe bending machine
Manufacturer: Eaton Leonard

  • Placid part number: B115-EL
  • OEM part number: 800469 H, Carriage Brake
  • Coil: 24 volts, Resistance: 36 ohms
  • Case O.D. = 4.5 “
  • 2 to 4 brakes per machine

Application – Holds chain connected to carriage & verticle axis stationary while pipe is being bent.



Machine: Beverage container labeling machine
Manufacturer: Trine

  • Placid part number: B150-CMS
  • OEM part number: 4516
  • OEM machine: 4500
  • Coil: 24 volts, Resistance: 55 ohms
  • Case O.D. = 5.2 “

Application – Tensions roll of labels, to be put on soda bottles, etc.

Machine: Bagger
Manufacturer: Rennco

  • Placid part number: C25-24-W2
  • OEM part number: Unknown
  • Coil: 24 volts, Resistance: 43 ohms
  • Case O.D. = 2-7/8 “
  • Must be mounted with shafts horizontal.

Application – Winds edge of plastic web. Powered by Placid Industries power supply PS-24-M



Machine: Digital Printing Press
Manufacturer: Ryobi
Also sold under Xerox name.

  • Placid part number: C100-PRST1
  • Ryobi part number: 95325004
  • Presstek part numbers: 535454528,
    535454528-1, 535454528-2, 535454528-3
  • Replaces Ogura clutch, part number: OPC 100-01
  • OEM machines: Ryobi 3404-DI  &
    Xerox Docu-Color 233-DI
  • Coil: 12 volts, Resistance: 11 ohms
  • Case O.D. = 4.5 “

Application – Feeding plate material in digital printing press.



Machine: Rewinder
Manufacturer: CTC International, (formerly Compensating Tension Control)

  • Placid part number: C130-90-CTC
  • OEM part number: B31159
  • Coil: 90 volts, Resistance: 633 ohms
  • Case O.D. = 5.20 “

Application – Controls tension on roll. Hollow through-shaft for compressed air, to actuate chuck.



Machine: Digital Printing Press
Manufacturer: Adast (Adamovske Strojirny)

  • Placid part number: C100-ADAST
  • OEM machine: Adast 557
  • Coil: 12 volts, Resistance: 11 ohms
  • Case O.D. = 4.5 “

Application – Feeding plate material in digital printing press.

Machine: 35mm Photographic Film Splicer
Manufacturer: Gretag

  • Placid part number: 15CC2-24-1F
  • OEM part number: 50-350706-001
  • Coil: 24 volts, Resistance: 205 ohms
  • Case O.D. = 1.437 “

Application – Apply torque to 35mm film bobbin, to determine the direction the film is wound inside the can.



Machine: Daytona USA car racing game
Manufacturer: Sega

  • Placid part number: C-Daytona
  • Part number: Sega 601-7489
  • Coil: 24 volts, Resistance: 31.3 ohms
  • Case O.D. = 3-5/8 “

Application – Connects to the steering wheel.



Machine: Docu-Mate II, Microfilm Machine
Manufacturer: Terminal Data Corp. (TDC)

  • Placid part number: CC30P-10-1
  • OEM part number: 212023
  • Coil: 10 volts, Resistance: 5 ohms
  • Case O.D. = 3-3/4 “
  • 2 clutches per machine
  • 1 brake per machine, Placid Ind. p/n B25P-10-1, TDC p/n 212022, not shown

Application – Engages motor to belt that transports original paper document.



Machine: Turret-style rewinder
Manufacturer: CTC International, (formerly Compensating Tension Control)

  • Placid part number: CC60P-CTC
  • OEM part number: P1068-19
  • Coil: 90 volts, Resistance: 540 ohms
  • Case O.D. = 3.50 “
  • 5 clutches per machine
  • Special low torque version, CC60-CTC-B, for small rolls & light tension, also available.

Application – Machine winds web onto smaller rolls. The clutch drives the small roll, controlling tension.

Left: Clutch CC60-CTC-B
Special low torque, high RPM version
Rated torque = 30 lb.-in.

Right: Clutch CC60P-90-CTC
Standard version
Rated torque = 60 lb.-in.

Left:

  • Placid name: Rotor
  • Placid part number: R15P-2
  • Accraply part number: 060502
  • Replaces Ogura OPC-15
  • Case O.D. = 1-5/8 “
Right:

  • Placid name: Stator
  • Placid part number: S15-10
  • Accraply part number: 09741
  • Replaces Ogura OPC-15-01
  • Coil Resistance: 8.4 ohms
  • Case O.D. = 4 “



Rotor & Stator (shown assembled)
Rotor:

  • Placid part number: R30
  • Torque = 30 lb.-inches
  • Case O.D. = 2.149″

Stator:

  • Placid part number: S30
  • Voltage: 6, 12, 24 or 90 D.C.
  • Case O.D. = 4″
MODEL

(Click p/n
to view
photo)

Torque
Range

(oz.-in.)

Input
Electric
Power

(watts)
Shaft Inertia

(lb.-in.-sec.2)

Slip Heat
Dissipation

(watts)
Overhung
Load, Max.

(lbs.)

Max.
RPM
Weight

(lbs.)

Data Sheets

Cover On Cover Off
  H3    0.04 – 2.5 2.5  3.8 x 10-6 5 1 10,000 0.23 H3 data sheet
  H11   0.3 – 11 2  36 x 10-6 9 15 4 9000 0.7 H11 data sheet
  H35   0.6 – 35 6  92 x 10-6 15 25 5 8000 2   H35 data sheet
  H85     3 – 85 5  560 x 10-6 35 60 40 6000 4.5   H85 data sheet
  H140     4 – 140 7  970 x 10-6 45 75 40 5000 6   H140 data sheet
  H250     6 – 250 7  290 x 10-5 65 110 50 5000 9 H250 data sheet
MODEL   DRAWINGS

 H3    DXF    DXF    DXF
 H11    DXF    DXF    DXF
 H35    DXF    DXF    DXF
 H85    DXF    DXF    DXF
 H140    DXF    DXF    DXF
 H250    DXF    DXF    DXF
PS   24 Volt, 0.75 Amp  &  12 Volt, 1.25 Amp versions
For all our small brakes & clutches



  • Easy to use – The Span adjustment scales output current for small or larger brakes & clutches.

Control Output Current via –

  • Knob (Potentiometer)
  • 0-10 Volt Signal – from computer or PLC
  • Follower Arm Potentiometer  F-12-6
  • Ultrasonic Sensor  U-B.

The Placid Ind. follower arm or ultrasonic sensor connects to the supply for constant tension unwinding / rewinding applications.

More information >>






PST   24 Volts,  2, 3, 4 Amp versions
For large brakes & clutches or multilple smaller ones.

Control Output Current via –

  • Knob (Potentiometer)
  • 0-5 volt,  0-10 volt  or  4-20mA DC Signal

More information >>






PSH   30 Volts,  2, 3, 5 Amp versions
For large brakes & clutches or multilple smaller ones.

Control Output Current or Output Voltage via –  Knob (Potentiometer)

More information >>

MODEL
F-12-6
(Aluminum Case)
FM-4-2
(Miniature)

Resistance 500 ohm
Electrical Angle 65 degrees
Mechanical Angle 360 degrees  (No stops)
Drag Torque 4 oz.-in. 1 oz.-in.
Overhung Load 20 lbs. 2 lbs.
Download set-up
instructions


Ultrasonic Sensor U-B Specifications

Power Input . . . . .  15-30 VDC, 35 milliamps max.
Powered by Placid Ind. power supply.
Range . . . . . . . .  3.9 – 39.3 inches (100-1000 mm)
Output  . . . . . . .  0 to 10 volts D.C., 20 mAmps max.
Push button adjustable endpoints
Resolution  . . . . .  0.012 inches (<0.3 mm)
Repeatability . . . .  0.02 inches (<0.5 mm)
Temperature . . . . .  14 to 140°F (-10 to +60°C)
Protection class  . .  IP67 (Sealed plastic case)
  Download detailed set-up directions.
FOR BRAKE
OR CLUTCH
MODEL
CUSTOMER SHAFT FLEXIBLE COUPLING DIMENSIONS
Diameter Type Part Number Diameter Length Shaft Gap Type
min. max.
B5Z 3/16 clamp J16-3-2 0.63 0.80 0.02 0.40 Beam
B1, C2 J19-3-3 0.75 0.90
B2 1/4 J22-4-4 0.88 1.06 0.46
C5 5/16 J25-5-5 1.00 1.25 0.65
B6 3/8 J28-6-6 1.13 1.50 0.91
B15, C15 3/8 2 flats at
90 degrees
J33-F37-F37 1.31 1.89 0.71 0.78 Oldham
B35, C35 1/2 J41-F50-F50 1.63 2.00 0.60 0.66
B60 3/4 3/16 keyway J50-C75-K75 1.97 2.35 0.72 0.79
2 flats at
90 degrees
J50-C75-F75
C70 3/4 3/16 keyway J50-K75-K75 1.97 2.35 0.72 0.79
2 flats at
90 degrees
J50-K75-F75
B115, B150
B220,C130
3/4 3/16 keyway J57-K75-K75 2.25 3.07 0.83 0.91
7/8 J57-K75-K87
KB & POB (large brakes) &
KC & POC (large clutches)
View large series of couplings.
Model Rated Torque Drawings  Photographs

Data Sheets



Solid Shaft Hollow Shaft
1 Side 2 Sides
B5ZD 1  oz.-in. Options B5ZD-2 / B5Z-2
drawing
Not
Available
B5Z,  B5ZD photo B5ZD data sheet
B5Z 5  oz.-in. B5Z data sheet
B1 16  oz.-in. Options B1-2 drawing B1 photo B1 data sheet
B2 40  oz.-in. B2-1 drawing B2-2 drawing B2 photo B2 data sheet
B6 6  lb.-in. B6-1 drawing B6-2 drawing B6 photo B6 data sheet
B15 15  lb.-in. B15-1 drawing B15-2 drawing B15-H drawing B15 photo B15 data sheet
B35 35  lb.-in. B35-1 drawing B35-2 drawing B35-H drawing B35 photo B35 data sheet
B60 60  lb.-in. B60-1F drawing
B60-1K drawing
Not
Available
B60-H drawing B60 photo B60 data sheet
B115 115  lb.-in. B115-1 drawing B115-H drawing B115 photo B115 data sheet
B150 150  lb.-in. B150-1 drawing B150-H drawing B150 photo B150 data sheet
B220 220  lb.-in. B220-1 drawing B220-H drawing B220 photo B220 data sheet
KB-2.5 15  lb.-ft. KB-2.5 drawing Not Available KB-2.5 photo KB-2.5 data sheet
KB-5 38  lb.-ft. KB-5 drawing KB-5 photo KB-5 data sheet
POB-100F  70  lb.-ft.   POB-100F – no fan POB-100F photo POB-100F
data sheet
with 110v fan POB-100F photo
with fan
with 220v fan
POB-200F 130  lb.-ft. POB-200F – no fan POB-200F photo POB-200F
data sheet
with 110v fan PFB-200F photo
with fan
with 220v fan
POB-400F 300  lb.-ft. POB-400F – no fan POB-400F photo POB-400F
data sheet
with 110v fan PFB-400F photo
with fan
with 220v fan
PLB-50 30  lb.-ft. Not Available PLB-50 drawing PLB-50 photo PLB-50 data sheet
PLB-100 70  lb.-ft. PLB-100 drawing PLB-100 photo PLB-100 data sheet
PLB-200 140  lb.-ft. PLB-200 drawing PLB-200 photo PLB-200 data sheet





Magnetic Particle Clutches
Model Rated Torque Drawings
Photographs
Data Sheets

C2 2  lb.-in. C2 drawing C2 photo C2 data sheet
C5 5 lb.-in. C5 drawing C5 photo C5 data sheet
CC14 14 lb.-in. CC14-HM drawing CC14-HM photo CC14 data sheet
C15 15 lb.-in. C15 drawing C15 photo C15 data sheet
C35 35 lb.-in. C35 drawing C35 photo C35 data sheet
C70 70 lb.-in. C70 drawing C70 photo C70 data sheet
C130 130 lb.-in. C130 drawing C130 photo C130 data sheet
KC-2.5 15  lb.-ft. KC-2.5 drawing KC-2.5 photo KC-2.5 data sheet
PHC-50 30  lb.-ft. PHC-50 drawing PHC-50 photo PHC-50 data sheet
KC-5 38  lb.-ft. KC-5 drawing KC-5 photo KC-5 data sheet
PHC-100 65  lb.-ft. PHC-100 drawing PHC-100 photo PHC-100 data sheet
POC-100F 75  lb.-ft. POC-100F drawing POC-100F photo POC-100F data sheet
POC-200F 130  lb.-ft. POC-200F drawing POC-200F photo POC-200F data sheet
POC-400F 300  lb.-ft. POC-400F drawing POC-400F photo POC-400F data sheet
Hysteresis Brakes
Model Rated
Torque

(oz.-in.)

Drawings  Photographs

Data Sheets




Solid Shaft
1 Side 2 Sides 1 Side
H3 2.6 H3-1 drawing H3-2 drawing H3-3 drawing H3 photo H3 data sheet
H11 11 H11-1 drawing H11-2 drawing H11-3 drawing H11 photo H11 data sheet
H35 35 H35-1 drawing H35-2 drawing H35-3 drawing H35 photo H35 data sheet
H85 85 H85-1 drawing H85-2 drawing H85-3 drawing H85 photo H85 data sheet
H140 140 H140-1 drawing H140-2 drawing H140-3 drawing H140 photo H140 data sheet
H250 250 H250-1 drawing H250-2 drawing H250-3 drawing H250 photo H250 data sheet

Models H11 thru H250 have the Placid Industries Cog-Buster which keeps slip torque smooth.


Power Supplies
Model Style Drawings
Photographs
Instructions

PS Open PS & PS-M
drawing
PS photo PS instructions
PS-M Open,
with ammeter
PS-M photo PS-M instructions
PS-MC Enclosed PS-MC
drawing
PS-MC photo PS-MC instructions
PST Enclosed,
aluminum case
PST
drawing
PST photo PST instructions
PSH Enclosed,
bench-top
PSH photo PSH instructions
